Blackbird v1.0

A fully monome-crow-compatible program card for the Music Thing Modular Workshop Computer.

This enables you to:

  • Live code with the workshop computer connected to a non-workshop computer running druid

  • Connect a monome norns via USB and run scripts on norns that interact with crow natively (try awake, buoys, loom ... many of these also allow you do use a monome grid for WS interactions)

  • Connect the workshop to a non-WS computer running Max MSP or MaxforLive with Ableton and use the monome-built M4L instruments to make the WS interact with Ableton or your own Max creations.

  • Write and upload your own (simple) program cards in the Lua (5.4.8) language. Upload to the WS computer via the "u" command in druid (on a non-WS computer). Uploaded scripts are saved to flash on the physical card itself- So you can write many different blackbird cards and hot-swap! If you want the name of your patch saved to flash for future reference (printed to host at startup) make the first line of your script match the format -- mycoolscript.lua.

    [NOTE] Make sure you wait for blackbird to fully start up before attempting to upload a lua script from druid. Startup is complete when welcome messages are printed in druid and the bottom-left LED starts flashing. Sending commands before blackbird is fully online can cause weirdness.

Blackbird does everything monome crow can do and works with all (I hope!) existing crow scripts. It has also been extended with Blackbird-specific functionality via the bb namespace.

A great place to get started is the original crow documentation since the examples there work here perfectly according to the hardware mapping below. More docs linked below.

Also check out the examples directory in this repo for some sample scripts (more to be added soon!)

Tested with druid, norns, MAX/MSP, pyserial - works with ANY serial host that sends compatible strings.

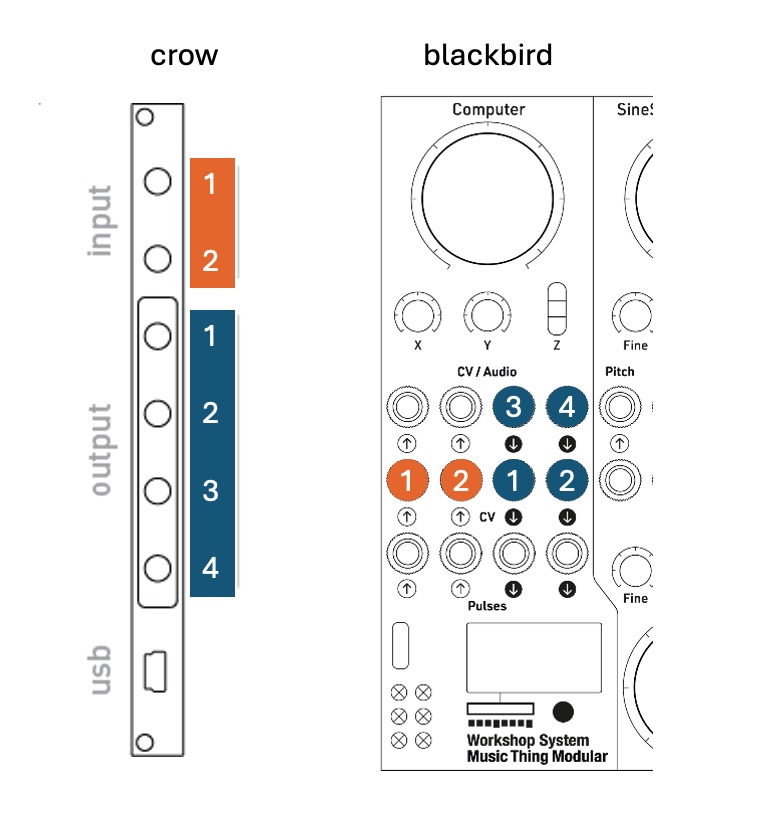

Hardware Mapping

Blackbird maps the Workshop Computer's hardware to crow's inputs and outputs as described below.

Outputs

Crow Script Workshop Computer Type
output[1] CV Out 1 CV Output (callibrated)
output[2] CV Out 2 CV Output (callibrated)
output[3] Audio Out 1 CV/Audio Output (not callibrated)
output[4] Audio Out 2 CV/Audio Output (not callibrated)

Inputs

Crow Script Workshop Computer Type
input[1] CV In 1 CV Input
input[2] CV In 2 CV Input

Blackbird-Specific Hardware

[NOTE] The WS computer's LEDs always show the positive output voltages for each of the six outputs (negative voltages are not shown).

Lua API Workshop Computer Type
bb.knob.main Main Knob Analog Input
bb.knob.x X Knob Analog Input
bb.knob.y Y Knob Analog Input
bb.switch.position 3-Position Switch Digital Input
bb.audioin[1] Audio In L Audio Input (query only, no detection)
bb.audioin[2] Audio In R Audio Input (query only, no detection)
bb.pulsein[1] Pulse In 1 Digital Input (supports change/clock detection)
bb.pulsein[2] Pulse In 2 Digital Input (supports change/clock detection)
bb.pulseout[1] Pulse Out 1 Digital Output
bb.pulseout[2] Pulse Out 2 Digital Output

Documentation

How It Works

Blackbird communicates with host applications (druid, norns, Max/MSP) over USB serial by using exactly the same protocol as real crow, and presents itself over USB in such a way that existing hosts don't know the difference between blackbird and crow.

┌─────────────────────────────────────────────────────────────────────┐
│                         HOST APPLICATION                            │
│    (druid / norns / MaxMSP / Python / Anything that speaks serial)  │
└────────────────────────────┬────────────────────────────────────────┘
                             │
                             │ USB Serial Connection
                             │ (Sends: Lua code, commands, queries)
                             │ (Receives: Print output, values, events)
                             ▼
┌────────────────────────────────────────────────────────────────────┐
│                    BLACKBIRD (Workshop Computer)                   │
│                                                                    │
│  ┌──────────────────────────────────────────────────────────────┐  │
│  │ USB Serial Handler                                           │  │
│  │ • Receives commands and code via USB                         │  │
│  │ • Anything with a ^^ prefix is read as a crow command        │  │
│  │ • Anything else is interpreted as lua code                   │  │
│  │ • Newline character '\n' tells system packet is complete.    │  │
│  │ • multi-line chunks can be sent between triple back-ticks ```│  │
│  │ • Sends responses and print() output back to host            │  │
│  └───────────────────┬──────────────────────────────────────────┘  │
│                      │                                             │
│                      ▼                                             │
│  ┌──────────────────────────────────────────────────────────────┐  │
│  │ Lua Script Execution                                         │  │
│  │ • Runs code sent from USB host OR loaded from flash memory   │  │
│  │ • Manages timing (metros, clocks)                            │  │
│  │ • Controls outputs via ASL actions and direct voltage        │  │
│  │ • Monitors inputs and fires user-defined lua callbacks       │  │
│  └───────────────────┬──────────────────────────────────────────┘  │
│                      │                                             │
│                      ▼                                             │
│  ┌──────────────────────────────────────────────────────────────┐  │
│  │ Hardware I/O interaction via Chris Johnson's ComputerCard.h  │  │
│  │ • Inputs/outputs/knobs/switch                                │  │
│  └──────────────────────────────────────────────────────────────┘  │
│                                                                    │
└────────────────────────────────────────────────────────────────────┘

Other Blackbird-specific goodness

Noise Generation

Audio-rate noise action with bb.noise() - generates noise directly in the audio loop for clean, efficient noise generation on any CV/Audio output. Optional paramater sets the noise level between 0.0 (silence) and 1.0 (full vol, default).

Example:

output[4]( bb.noise() )

--OR

output[2].action = bb.noise(0.5) -- define action
output[2]() -- run the action

Define an 'ASAP' function

bb.asap - Run code as fast as possible in the control thread with no detection. Useful for updating parameters smoothly with knobs. Use carefully as if you do much in here then performance will be impacted.

Only runs if it exists. To clear/stop this function use bb.asap = nil

Example:

bb.asap = function()
    myParameter = bb.knob.main
end

Choose your priorities (advanced/dangerous-living users only)

bb.priority() - Balance accurate timing with accurate output (configures failure mode when overloaded). the default priority is 'timing', meaning that maintaining the schedule of output events is more important than either reproducing the requested signal as accuractely as possible or as early as possible. For most situations this will work perfectly.

However, if you find the latency between input and output is too high (do try using output gates/envelopes at a free output before using this) OR you just like the sound of a computer breaking down (I do!) you can read on. You can try running bb.priority('balanced') which will be faster than the default but less stable. For those who want to more accurately render (probably only one, only up to about 1kHz) audio-rate waveform and are OK with the trade off that too much load WILL cause clocks and LFOs and everything to slowwwwwww dooowwwwwwn while processing any medium-heavy load there is bb.priority('accuracy') which causes the system to prioritize getting the output right, even if the clock get's all rubbery in order to get there. The good news is it shouldn't crash, and the lack of crash CAN be the fun part.

This trade-off is inherent to the RP2040 version of the crow firmware since the original crow runs on a more powerful STM32F microcontroller. I have done my best to make the constraints here a feature and not a limitation.

Credits & Thank yous

Written by Dune Desormeaux / @dessertplanet, 2025

Special thanks to:

  • Tom Whitwell for the Workshop System
  • Chris Johnson for the ComputerCard framework
  • Brian Crabtree and Trent Gill (monome & Whimsical Raps) for the original crow and the open source crow firmware
  • Zack Scholl (infinitedigits) for encouragement and proving Lua can work on RP2040 with his midi-to-cv project
  • Ben Regnier (Q*Ben) for extensive testing and feedback without which this would not have been possible

License

GPLv3 or later - see LICENSE file for details.

Known Issues

A few things that are on the radar but that I don't plan to fix (at least not now). If you think any of them are dealbreakers please file a github issue and we can debate!

  • Setting clock.tempo above 500 bpm can cause crashes. Slow down, man!
  • Running scripts with references to the ii table produces harmless (but chatty) lua nil global errors. Ideally these would be silent until/unless i2c support is somehow added/defined for an alleged eurorack-computer-only-future-module.
  • System does not prevent receipt of serial comms during startup that are known to cause issues. This is doc'd in the overview but could be prevented in code entirely in a future version.
  • Running crow.reset() or ^^k doesn't clear callback functions so they can still be called if triggers continue until they are manually cleared or redefined.
  • Wobblewobble norns script doesn't play nice with blackbird as is. I think the solution is to turn down the frequency that supercollider is triggering output.volts message dispatch in the norns-side code but this is untested.
